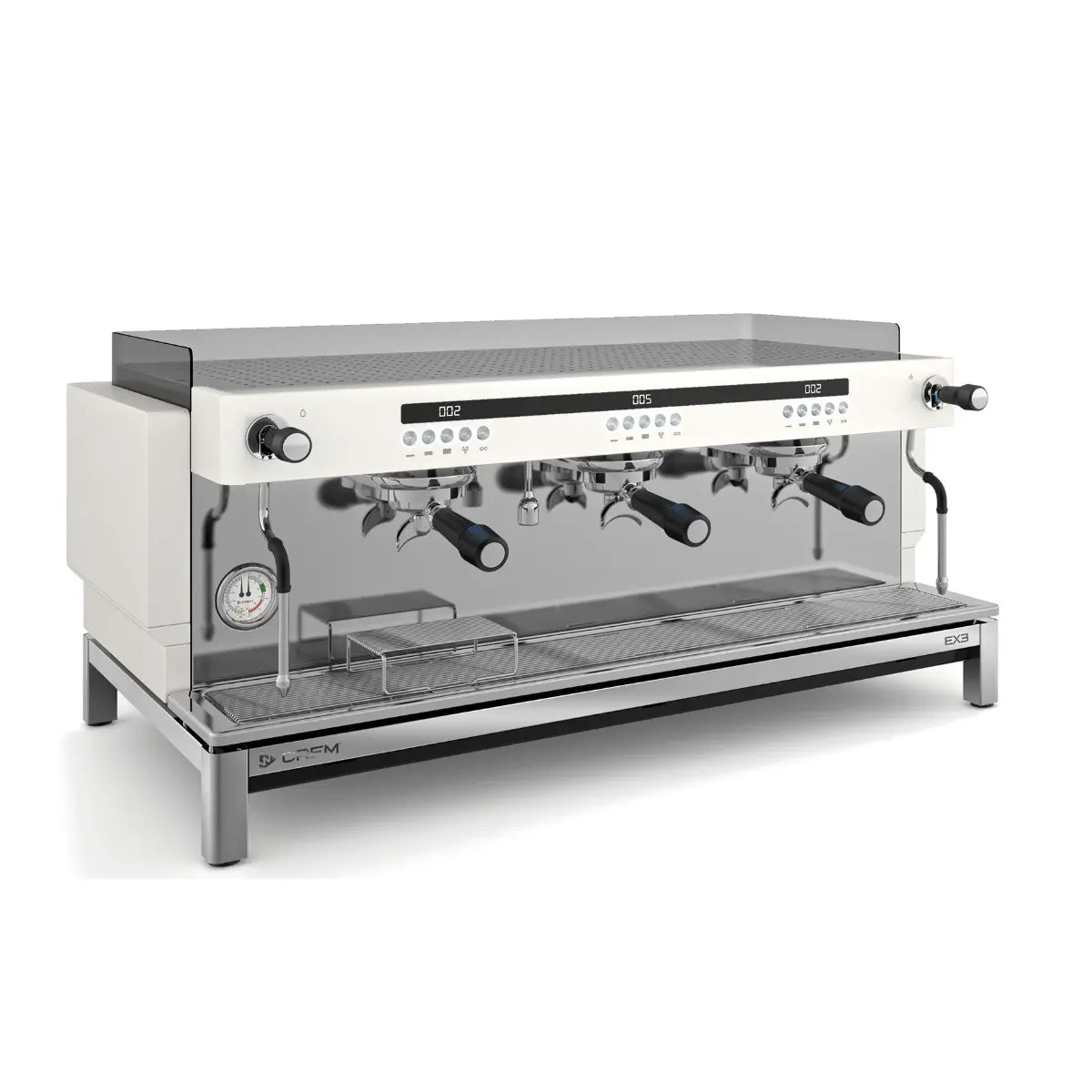

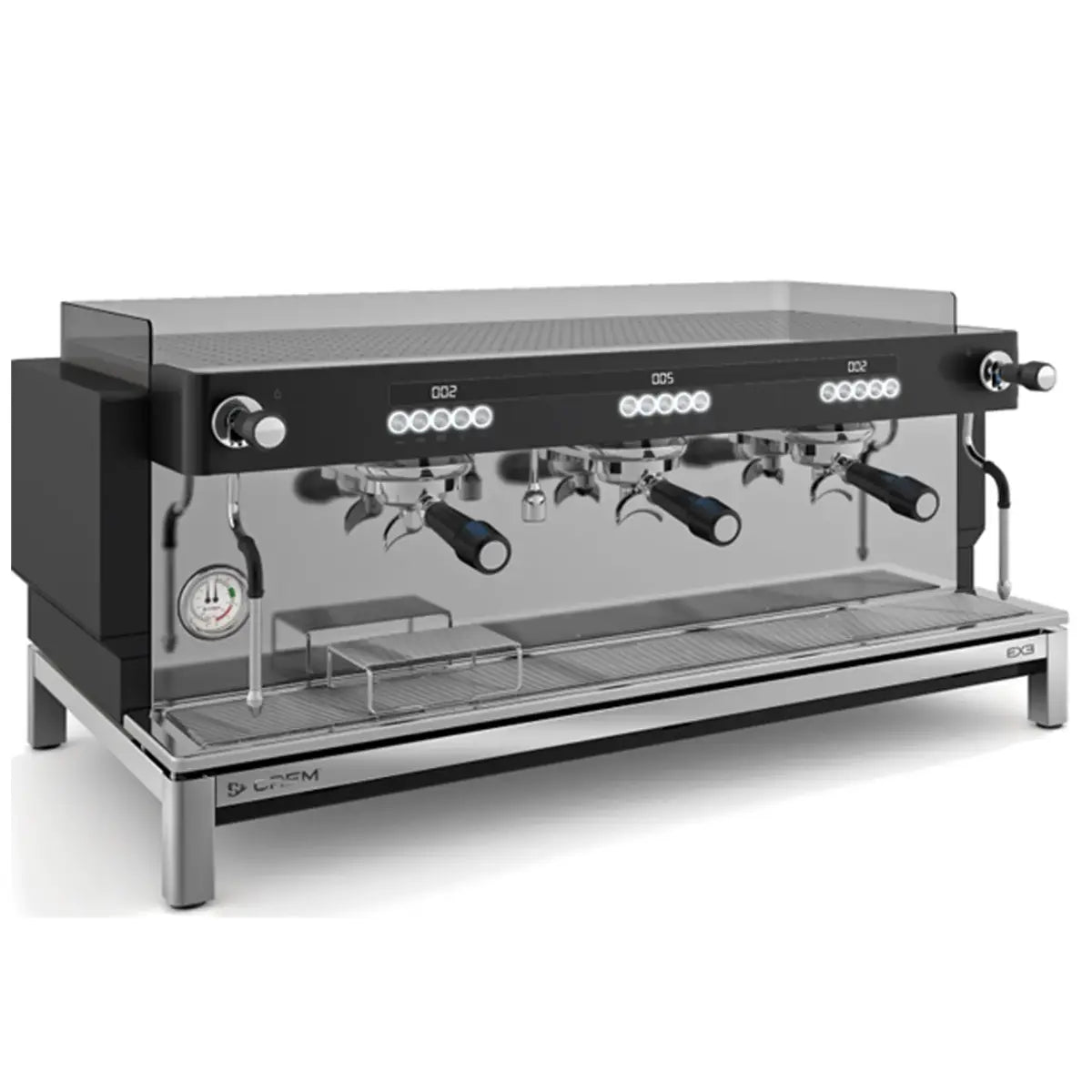

CREM EX3 3 Group Display 11.5 Litres Espresso Machine - Takeaway

Precision Brewing with the PID Display

The CREM EX3 3 Group Display Espresso Machine delivers professional-grade performance with PID temperature control and a digital display for precise shot timing and thermal monitoring. Its 11.5-litre boiler maintains consistent steam pressure during peak service, making it ideal for busy specialty coffee operations demanding exceptional extraction quality.

Optimised for the Takeaway Environment

Engineered specifically for the fast-paced "to-go" market, the Takeaway (High Group) configuration of the EX3 provides the essential clearance required for modern service. With an increased height between the group heads and the drip tray, baristas can brew directly into large 12oz or 16oz takeaway cups, significantly improving workflow efficiency and reducing the need for secondary shot pots. This ergonomic advantage, paired with the machine’s customisable aesthetics and smart design, ensures it fits seamlessly into any high-street cafe or bustling transport hub.

EX LINE 2022 Brochure A4

EX3 Brochure

EX3 Product/Specification Sheet

You get all of these freebies when you purchase this machine through Prime Coffee Suppliers:

• Free! Delivery (Worth £95): Standard delivery takes 2–3 days, with next-day delivery available for in-stock items ordered before 12 midday.
• Free! 12 months parts warranty.
• Free! Installation (Worth £390): Have our experts set up your CREM EX3 Line for peak performance. Installation takes 7 days and requires a pre-site survey, which you can complete online or by booking an in-person visit.
• Free! Onsite Training: Comprehensive guidance during installation to master your new machine.

• Free! 2KG of MONT58 Sustainable Organic Coffee Beans (Worth £90): Start your journey with premium beans on us.

Features

2 x Cool touch steam wands with Black Levers: These insulated wands remain cool to the touch for enhanced safety and are operated by sleek black levers for rapid, intuitive milk texturing.

Pressure Switch Control: A heavy-duty mechanical system that meticulously regulates the boiler's internal pressure to ensure consistent steam power throughout the day.

PID Controlled: Advanced digital technology provides ultra-precise temperature management, maintaining the perfect heat for constant back-to-back extractions.

Eco Mode & On/Off Mode: This energy-saving feature allows the machine to operate more efficiently during quiet periods, reducing running costs without compromising performance.

Display with boiler temperature display and counter: The integrated digital screen provides real-time feedback on boiler heat and tracks shot counts for better quality control.

Rotary Pump: This high-capacity, professional-grade pump ensures quiet and stable water pressure, even when both group heads are in heavy use.

1/2 turn rotary taps (optional): These ergonomic dials provide an alternative control method, allowing for quick and effortless steam activation with a simple half-turn.

Pre-infusion chamber group head: This system gently pre-wets the coffee grounds at low pressure to ensure a more balanced and full-bodied espresso extraction.

Volumetric Dosing: Programmable controls allow you to automate exact water volumes for single and double shots, ensuring consistency across every cup.

Group Flush Button: A dedicated button makes it easy to quickly rinse the group head between orders, keeping the brewing area clean and fresh.

Group auto cleaning cycle: The automated back-flush programme simplifies daily maintenance, ensuring the internal brewing components remain free from coffee oils.

60mm Single pressure gauge: This large, clear dial provides the barista with an instant visual readout of the machine’s steam boiler pressure.

1 x Hot water spout: A precision-placed outlet for dispensing hot water, perfect for preparing Americanos or tea at a moment's notice.

Double Pressure Gauge: A comprehensive dual-display gauge that allows for simultaneous monitoring of both the boiler and the pump's extraction pressure.

3 x 14 gr porta filter (double) + 1 x 7 gr porta filter (single): The machine is supplied with three professional portafilters to accommodate a variety of drink sizes and strengths.

Ease of Servicing: The internal architecture is thoughtfully designed to allow engineers quick and easy access for routine servicing and repairs.

Improved Drainage: An efficient drainage system and redesigned drip tray ensure that excess water is managed cleanly and effectively.

Barista Lighting: Integrated LED lights illuminate the workspace, allowing the barista to clearly monitor the extraction and crema even in low-light environments.

Lever Taps: These tactile, high-performance levers offer the barista immediate and precise control over steam flow for perfect micro-foam.

Takeaway Version: Configured with extra height, this specific model is tailored for businesses that primarily serve coffee in larger, on-the-go cups.

Specifications CREM EX3 3 Group Display Takeaway

Capacity & Usage	- Suitable for restaurants, cafes, coffee shops of all sizes serving 400-500 cups/day
	- Beverages: Espresso, Double Espresso, Cortado, Ristretto, Flat White, Cappuccino, Latte, Americano
Power & Electrical	- Power Consumption: 380-415V 1N~4350W 50-60Hz
	- Electrical Connection: 1N~230V 50Hz, 20amp plug Single Phase
Water Connection	- Water Connection: 3/8" Internal Thread
	- Mains Water Fitted: Yes, 3/8" Thread
Boiler & Pressure	- Boiler: 1
	- Boiler Volume: 17.5 Litres
	- Boiler Pressure, Bar: 0.8 to 1.2
	- Pressure Switch Control: Yes
Functionality	- Brew Groups: 3
	- Group Height: STD/TA (O)
	- Group Heads: 3
	- Machine Function Type: Rotary Pump
	- Volumetric Dosing: 5 Keypad Button
	- Steaming Wands: 2
	- Half Turn Rotary Taps: Yes
	- Pre-Infusion Chamber Group Head and Electronic Pre-Infusion: Yes
Dimensions & Weight	- Dimensions: 990W x 575D x 465H (mm) / 99 x 57.5 x 46.5 (cm)
	- Weight: 74Kg
Appearance	- Colour: Stainless Steel+ Black / Stainless Steel+ White
Other	- Canister Capacity: N/A (Grinder Needed)
	- Milk Frother/Steaming Wand Included: Yes - 3
	- Hot Water Dispenser: Yes, Separate Spout
	- Touch Screen: No, Buttons
	- PID: No
	- Auto Clean Function: Yes, Group Cycle Auto Cleaning
	- App Controlled: No
	- Instant Ingredients Addition: No
	- Instant ingredients can be added: No
	- Mains water fitted: Yes - 3/8" Thread
	- Espresso/ Mugs/ Cups/ Travel Mugs: All

Optional Extras

As a higher modular and customisable Espresso machine there is a range of different options to add on to the EX3

• Group Heights STD/ TA
• 1/2 Turn Rotary Taps
• Single or Double Pressure Gauges
• Different Steam/HW Controls and Levers
• Colours: White, Black, Red and Stainless Steel
• Options of different body covers - Walnut, Oak & Silver
• Hidden Feet colours (White or Stainless Steel)
• Knob Lever Finishes (STD: White, Black. O: Oak, Walnut)

All details of the Optional extras can be seen in the brochure tab, give us a call to discuss adding these extras to the EX3 on 0333 090 3477

Choosing the Right Crem EX3: Control vs. Display vs. Takeaway

The Crem EX3 3-Group is the ultimate chameleon of the commercial espresso world. Winner of the Red Dot Design Award, it combines Expobar’s legendary "bulletproof" internal engineering with a modular system that allows you to build a machine specific to your business volume.

However, with options like Control, Display, and Takeaway, it is vital to select the configuration that matches your daily workflow. Here is a guide to help you decide.

1. Control vs. Display: Precision vs. Simplicity

The primary difference between these two versions lies in the interface and temperature stability.

(Image: Host Milan 2025 - Prime Coffee Suppliers CE)

• The EX3 Control: This is the "standard" workhorse. It features a tactile 5-button keypad for volumetric dosing. It is ideal for high-volume shops where simplicity and speed are the priority. It uses a traditional mechanical pressure switch to manage temperature.

• The EX3 Display: This version upgrades the machine with a digital screen and PID temperature control. This allows you to set precise boiler temperatures for specialty coffee beans. The display also provides shot timers for every group, helping maintain consistency without needing external scales or timers.

Choose Display if: You serve specialty coffee, require precise temperature stability, or want built-in shot timers for quality control.

2. Takeaway (High Group) vs. Standard

The "Takeaway" designation refers to the physical clearance between the drip tray and the portafilter.

• Standard Height: Built for traditional ceramic espresso cups and smaller 8oz lattes. It provides a classic look and reduces splashing when brewing short shots.

• Takeaway (High Group): The group heads are raised to accommodate 12oz, 16oz, or even larger travel mugs directly under the spout.

Choose Takeaway if: Your business model focuses on "to-go" service. It eliminates the extra step of brewing into a shot glass and then pouring into a paper cup, significantly increasing speed during morning rushes.

3. Why the 3-Group "Maxi" is a Powerhouse

When moving to the 3-group configuration, you aren't just getting an extra handle; you are getting a massive boost in recovery time.

• Huge Steam Capacity: The 3-group model features a 17.5L copper boiler. This ensures that even during back-to-back orders, the steam pressure remains high for milk texturing.

• Modular Aesthetics: Beyond the technical specs, the EX3 is famous for its looks. You can customize the side panels with Oak, Walnut, or brushed aluminum to match your interior design.

Comparison Summary: Which is for you?

	Recommended Configuration	Key Benefit
Traditional Italian Cafe	3-Group Control (Standard Height)	Durability & high-volume output at the best price.
Specialty Coffee Shop	3-Group Display (Standard Height)	PID precision for complex flavor profiles.
Busy "To-Go" Kiosk	3-Group Control (Takeaway)	Maximum speed for large paper cups.
High-End Boutique Cafe	3-Group Display (Takeaway)	The full package: Precision, speed, and aesthetics.

About the Brand

CREM offers a wide range of coffee solutions with top-notch quality and design to cater to the growing demand for coffee in the foodservice industry. Their machines provide superior coffee experiences, with a focus on customer satisfaction and operator success.
